INTRODUCTION
Mobile Computing : A technology that allows transmission of data, via a computer, without having to be connected to a fixed physical link.
Mobile voice communication is widely established throughout the world and has had a very rapid increase in the number of subscribers to the various cellular networks over the last few years. An extension of this technology is the ability to send and receive data across these cellular networks. This is the principle of mobile computing.
Mobile data communication has become a very important and rapidly evolving technology as it allows users to transmit data from remote locations to other remote or fixed locations. This proves to be the solution to the biggest problem of business people on the move - mobility.
In this article we give an overview of existing cellular networks and describe in detail the CDPD technology which allows data communications across these networks. Finally, we look at the applications of Mobile Computing in the real world.
A cellular network consists of mobile units linked together to switching equipment, which interconnect the different parts of the network and allow access to the fixed Public Switched Telephone Network (PSTN). The technology is hidden from view; it's incorporated in a number of tranceivers called Base Stations (BS). Every BS is located at a strategically selected place and covers a given area or cell - hence the name cellular communications. A number of adjacent cells grouped together form an area and the corresponding BSs communicate through a so called Mobile Switching Centre (MSC). The MSC is the heart of a cellular radio system. It is responsible for routing, or switching, calls from the originator to the destinator. It can be thought of managing the cell, being responsible for set-up, routing control and termination of the call, for management of inter-MSC hand over and supplementary services, and for collecting charging and accounting information. The MSC may be connected to other MSCs on the same network or to the PSTN.
Each cell has a number of channels associated with it. These are assigned to subscribers on demand. When a Mobile Station (MS) becomes 'active' it registers with the nearest BS. The corresponding MSC stores the information about that MS and its position. This information is used to direct incoming calls to the MS.
If during a call the MS moves to an adjacent cell then a change of frequency will necessarily occur - since adjacent cells never use the same channels. This procedure is called hand over and is the key to Mobile communications. As the MS is approaching the edge of a cell, the BS monitors the decrease in signal power. The strength of the signal is compared with adjacent cells and the call is handed over to the cell with the strongest signal.
During the switch, the line is lost for about 400ms. When the MS is going from one area to another it registers itself to the new MSC. Its location information is updated, thus allowing MSs to be used outside their 'home' areas.
DATA COMMUNICATIONS

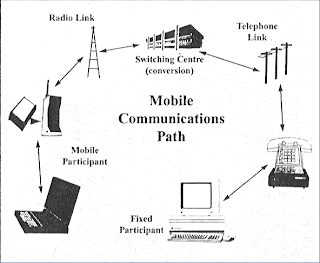

Mobile Communications Overview
Data Communications is the exchange of data using existing communication networks. The term data covers a wide range of applications including File Transfer (FT), interconnection between Wide-Area-Networks (WAN), facsimile (fax), electronic mail, access to the internet and the World Wide Web (WWW).Data Communications have been achieved using a variety of networks such as PSTN, leased-lines and more recently ISDN (Integrated Services Data Network) and ATM (Asynchronous Transfer Mode)/Frame Relay. These networks are partly or totally analogue or digital using technologies such as circuit - switching, packet - switching e.t.c.
Circuit switching implies that data from one user (sender) to another (receiver) has to follow a prespecified path. If a link to be used is busy , the message can not be redirected , a property which causes many delays.
Packet switching is an attempt to make better utilisation of the existing network by splitting the message to be sent into packets. Each packet contains information about the sender, the receiver, the position of the packet in the message as well as part of the actual message. There are many protocols defining the way packets can be send from the sender to the receiver. The most widely used are the Virtual Circuit-Switching system, which implies that packets have to be sent through the same path, and the Datagram system which allows packets to be sent at various paths depending on the network availability. Packet switching requires more equipment at the receiver, where reconstruction of the message will have to be done.
The introduction of mobility in data communications required a move from the Public Switched Data Network (PSDN) to other networks like the ones used by mobile phones. PCSI has come up with an idea called CDPD (Cellular Digital Packet Data) technology which uses the existing mobile network (frequencies used for mobile telephony).
Mobility implemented in data communications has a significant difference compared to voice communications. Mobile phones allow the user to move around and talk at the same time; the loss of the connection for 400ms during the hand over is undetectable by the user. When it comes to data, 400ms is not only detectable but causes huge distortion to the message. Therefore data can be transmitted from a mobile station under the assumption that it remains stable or within the same cell.
CDPD TECHNOLOGY : THE HOT COOKIE
Today, the mobile data communications market is becoming dominated by a technology called CDPD.
There are other alternatives to this technology namely Circuit Switched Cellular, Specialised Mobile Radio and Wireless Data Networks. As can be seen from the table below the CDPD technology is much more advantageous than the others.
| Cellular Digital Packet Data (CDPD) | Circuit Switched Cellular | Specialized Mobile Radio (Extended) | Proprietary Wireless Data Networks | |
| Speed | best | best | good | good |
| Security | best | better | good | better |
| Ubiquity | best | best | good | better |
| Cost of Service | best | better | better | good |
| Cost of Deployment | best | best | better | good |
| Mobility | best | good | better | good |
| Interoperability | best | good | good | better |
CDPD's principle lies in the usage of the idle time in between existing voice signals that are being sent across the cellular networks. The major advantage of this system is the fact that the idle time is not chargeable and so the cost of data transmission is very low. This may be regarded as the most important consideration by business individuals.
CDPD networks allow fixed or mobile users to connect to the network across a fixed link and a packet switched system respectively. Fixed users have a fixed physical link to the CDPD network. In the case of a mobile end user, the user can, if CDPD network facilities are non-existent, connect to existing circuit switched networks and transmit data via these networks. This is known as Circuit Switched CDPD (CS-CDPD).
Circuit Switched CDPD
Service coverage is a fundamental element of providing effective wireless solutions to users and using this method achieves this objective. Where CDPD is available data is split into packets and a packet switched network protocol is used to transport the packets across the network. This may be of either Datagram or Virtual Circuit Switching form.
The data packets are inserted on momentarily unoccupied voice frequencies during the idle time on the voice signals. CDPD networks have a network hierarchy with each level of the hierarchy doing its own specified tasks.
The hierarchy consists of the following levels :
- Mobile End User Interface. Using a single device such as a Personal Digital Assistant or personal computer which have been connected to a Radio Frequency (RF) Modem which is specially adapted with the antennae required to transmit data on the cellular network, the mobile end user can transmit both data and voice signals. Voice signals are transmitted via a mobile phone connected to the RF Modem Unit. RF Modems transfer data in both forward and reverse channels using Gaussian Minimum Shift Keying (MSK)Frequency Shift Keying (FSK) at modulation index of 0.5 . modulation , a modified form of
- Mobile Data Base Station (MDBS).In each cell of the cellular reception area, there is a Mobile Data Base Station (MDBS) which is responsible for detection of idle time in voice channels, for relaying data between the mobile units and the Mobile Data Intermediate Systems (MDIS), sending of packets of data onto the appropriate unoccupied frequencies as well as receiving data packets and passing them to the appropriate Mobile end user within its domain.
- Detection of idle time.This is achieved using a scanning receiver(also known as sniffer) housed in the MDBS. The sniffer detects voice traffic by measuring the signal strength on a specific frequency, hence detecting an idle channel.
- Relaying data packets between mobile units and networks.If the sniffer detects two idle channels then the MDBS establishes two RF air-links between the end user unit and itself. Two channels are required to achieve bidirectional communications. Oneforward communication from the MDBS to the mobile units. This channel is unique to each mobile unit and hence contentionless. The reverse channels are shared between a number of Mobile units and as a result, two mobile units sharing a reverse link cannot communicate to each other. channel is for
Reverse channels are accessed using a Digital Sense Multiple Access with Collision Detection (DSMA - CD) protocol which is similar to the protocol used in Ethernet communication which utilises Carrier Sense Multiple Access with Collision Detection (CSMA - CD). This protocol allows the collision of two data packets on a common channel to be detected so that the Mobile unit can be alerted by the MDBS to retry transmission at a later time.
Once a link is established, the MDBS can quickly detect if and when a voice signal is ramping up (requesting) this link and within the 40ms it takes for the voice signal to ramp up and get a link, the MDBS disconnects from the current air-link and finds another idle channel establishing a new link. This is known as channel hopping.
The speed at which the MDBS hops channels ensures that the CDPD network is completely invisible to the existing cellular networks and it doesn't interfere with transmission of existing voice channels.
When the situation occurs that all voice channels are at capacity, then extra frequencies specifically set aside for CDPD data can be utilised. Although this scenario is very unlikely as each cell within the reception area has typically 57 channels, each of which has an average of 25 - 30% of idle time.
- Detection of idle time.
- Mobile Data Intermediate Systems (MDIS)Groups of MDBS that control each cell in the cellular network reception area are connected to a higher level entity in the network hierarchy, the Mobile Data Intermediate Systems. Connection is made via a wideband trunk cable. Data packets are then relayed by MDBS to and from mobile end users and MDIS.
These MDIS use a Mobile Network Location Protocol (MNLP) to exchange location information about Mobile end users within their domain. The MDIS maintains a database for each of the M-ES in its serving area. Each mobile unit has a fixed home area but may be located in any area where reception is available. So, if a MDIS unit recieves a data packet addressed to a mobile unit that resides in its domain, it sends the data packet to the appropriate MDBS in its domain which will forward it as required. If the data packet is addressed to a mobile unit in another group of cells, then the MDIS forwards the data packet to the appropriate MDIS using the forward channel. The MDIS units hide all mobility issues from systems in higher levels of the network hierarchy.
In the reverse direction, where messages are from the Mobile end user, packets are routed directly to their destination and not necessarily through the mobile end users home MDIS.
- Intermediate Systems (IS)MDIS are interconnected to these IS which form the backbone of the CDPD system. These systems are unaware of mobility of end-users, as this is hidden by lower levels of the network hierarchy. The ISs are the systems that provide the CDPD interface to the various computer and phone networks.
The IS's relay data between MDIS's and other IS's throughout the network. They can be connected to routers that support Internet and Open Systems Interconnection Connectionless Network Services (OSI-CLNS), to allow access to other cellular carriers and external land- based networks.
CDPD Network
CDPD NETWORK RELIABILITY
There are some actions that are necessary in order to obtain reliability over a network.
- User Authentication
The procedure which checks if the identity of the subscriber transferred over the radio path corresponds with the details held in the network.
- User Anonymity
Instead of the actual directory telephone number , the International Mobile Subscriber Identity (IMSI) number is used within the network to uniquely identify a mobile subscriber.
- Fraud Prevention
Protection against impersonation of authorised users and fraudulent use of the network is required.
- Protection of user data
All the signals within the network are encrypted and the identification key is never transmitted through the air. This ensures maximum network and data security.
The information needed for the above actions are stored in data bases. The Home Location Register (HLR) stores information relating the Mobile Station (MS) to its network. This includes information for each MS on subscription levels , supplementary services and the current or most recently used network and location area. The Authentication Centre (AUC) provides the information to authenticate MSs using the network , in order to guard against possible fraud , stolen subsciber cards , or unpaid bills. The Visitor Location Register (VLR) stores information about subscription levels , supplementary services and location for a subscriber who is currently in, or has very recently been ,in that area. It may also record whether a subscriber is currently active , thus avoiding delay and unnecessary use of the network in trying to call a switched off terminal.
The data packets are transmitted at speeds of typically 19.2 Kilobits/second to the MDBS, but actual throughput may be as low as 9.6 Kilobits/second due to the extra redundant data that is added to transmitted packets. This information includes sender address, reciever address and in the case of Datagram Switching, a packet ordering number. Check data is also added to allow error correction if bits are incorrectly recieved. Each data packet is encoded with the check data using a Reed-Solomon forward error correction code. The encoded sequence is then logically OR'ed with a pseudo-random sequence, to assist the MDBS and mobile units in synchronisation of bits. The transmitted data is also encrypted to maintain system security.
CDPD follows the OSI standard model for packet switched data communications. The CDPD architecture extends across layers one, two and three of the OSI layer model. The mobile end users handle the layer 4 functions (transport) and higher layers of the OSI model such as user interface.
APPLICATIONS OF MOBILE COMPUTING
The question that always arises when a business is thinking of buying a mobile computer is "Will it be worth it?"
In many fields of work, the ability to keep on the move is vital in order to utilise time efficiently. Efficient utilisation of resources (ie: staff) can mean substantial savings in transportation costs and other non quantifyable costs such as increased customer attention, impact of on site maintenance and improved intercommunication within the business.
The importance of Mobile Computers has been highlighted in many fields of which a few are described below:
- For Estate Agents Estate agents can work either at home or out in the field. With mobile computers they can be more productive. They can obtain current real estate information by accessing multiple listing services, which they can do from home, office or car when out with clients. They can provide clients with immediate feedback regarding specific homes or neighborhoods, and with faster loan approvals, since applications can be submitted on the spot. Therefore, mobile computers allow them to devote more time to clients.
- Emergency Services Ability to recieve information on the move is vital where the emergency services are involved. Information regarding the address, type and other details of an incident can be dispatched quickly, via a CDPD system using mobile computers, to one or several appropriate mobile units which are in the vicinity of the incident.
In courts
- Defense counsels can take mobile computers in court. When the opposing counsel references a case which they are not familiar, they can use the computer to get direct, real-time access to on-line legal database services, where they can gather information on the case and related precedents. Therefore mobile computers allow immediate access to a wealth of information, making people better informed and prepared.
- In companies Managers can use mobile computers in, say, critical presentations to major customers. They can access the latest market share information. At a small recess, they can revise the presentation to take advantage of this information. They can communicate with the office about possible new offers and call meetings for discussing responds to the new proposals. Therefore, mobile computers can leverage competitive advantages.
- Stock Information Collation/Control In environments where access to stock is very limited ie: factory warehouses. The use of small portable electronic databases accessed via a mobile computer would be ideal.
Data collated could be directly written to a central database, via a CDPD network, which holds all stock information hence the need for transfer of data to the central computer at a later date is not necessary. This ensures that from the time that a stock count is completed, there is no inconsistency between the data input on the portable computers and the central database.
- Credit Card Verification At Point of Sale (POS) terminals in shops and supermarkets, when customers use credit cards for transactions, the intercommunication required between the bank central computer and the POS terminal, in order to effect verification of the card usage, can take place quickly and securely over cellular channels using a mobile computer unit. This can speed up the transaction process and relieve congestion at the POS terminals.
- Taxi/Truck Dispatch Using the idea of a centrally controlled dispatcher with several mobile units (taxis), mobile computing allows the taxis to be given full details of the dispatched job as well as allowing the taxis to communicate information about their whereabouts back to the central dispatch office. This system is also extremely useful in secure deliveries ie: Securicor. This allows a central computer to be able to track and recieve status information from all of its mobile secure delivery vans. Again, the security and reliabilty properties of the CDPD system shine through.
Taxi Dispatch Network
Usage of a mobile unit to send and read emails is a very useful asset for any business individual, as it allows him/her to keep in touch with any colleagues as well as any urgent developments that may affect their work. Access to the Internet, using mobile computing technology, allows the individual to have vast arrays of knowledge at his/her fingertips.
Paging is also achievable here, giving even more intercommunication capability between individuals, using a single mobile computer device.
THE FUTURE
With the rapid technological advancements in Artificial Intelligence, Integrated Circuitry and increases in Computer Processor speeds, the future of mobile computing looks increasingly exciting.
With the emphasis increasingly on compact, small mobile computers, it may also be possible to have all the practicality of a mobile computer in the size of a hand held organizer or even smaller.
Use of Artificial Intelligence may allow mobile units to be the ultimate in personal secretaries, which can receive emails and paging messages, understand what they are about, and change the individuals personal schedule according to the message. This can then be checked by the individual to plan his/her day.
The working lifestyle will change, with the majority of people working from home, rather than commuting. This may be beneficial to the environment as less transportation will be utilised. This mobility aspect may be carried further in that, even in social spheres, people will interact via mobile stations, eliminating the need to venture outside of the house.
This scary concept of a world full of inanimate zombies sitting, locked to their mobile stations, accessing every sphere of their lives via the computer screen becomes ever more real as technology, especially in the field of mobile data communications, rapidly improves and, as shown below, trends are very much towards ubiquitous or mobile computing.
Major Trends in Computing
Indeed, technologies such as Interactive television and Video Image Compression already imply a certain degree of mobility in the home, ie. home shopping etc. Using the mobile data communication technologies discussed, this mobility may be pushed to extreme.
The future of Mobile Computing is very promising indeed, although technology may go too far, causing detriment to society.
GLOSSARY
CDPD Cellular Digital Packet Data NMT Nordic Mobile Telephone AMPS Advanced Mobile Phone Services GSM Global System Mobile DCS Digital Communication System PCS Personal Communication System PSTN Public Switched Telephone Network BS Base Station MSC Mobile Switching Centre MS Mobile Station WAN Wide Area Network ISDN Integrated Services Data Network ATM Asynchronous Transfer Mode PSDN Public Switched Data Network PCSI Pacific Communication Systems Inc. CS-CDPD Circuit Switching Cellular Digital Packet Data RF Radio Frequency MSK Minimum Shift Keying FSK Frequency Shift Keying MDBS Mobile Data Base Station MDIS Mobile Data Intermediate Systems DSMA-CD Digital Sense Multiple Access with Collision Detection CSMA-CD Carrier Sense Multiple Access with Collision Detection MNLP Mobile Network Location Protocol M-ES Mobile End Systems IS Intermediate System OSI-CLNS Open Systems Interconnection - Connectionless Network Services IMSI International Mobile Subscriber Identity HLR Home Location Register AUC Authentication Centre VLR Visitor Location Register POS Point of Sale
APPENDIX:
- Defense counsels can take mobile computers in court. When the opposing counsel references a case which they are not familiar, they can use the computer to get direct, real-time access to on-line legal database services, where they can gather information on the case and related precedents. Therefore mobile computers allow immediate access to a wealth of information, making people better informed and prepared.
- Interview with Mr Eleftherios Koudounas, Assistant Commercial Services Manager at Cyprus Telecommunications Authority
Very useful, gave an informative insight into the Data Communication technology and recent advances.
- Interview with Dr Leonidas Leonidou, Mobile Services, Cyprus Telecommunications Authority
Very useful information regarding mobile cellular technology.
- Interview with Dr Zinonas Ioannou, Mobile Services, Cyprus Telecommunications Authority
Very useful in explaining details of existing cellular mobile technologies.
- Cellular Communications for Data Transmission
M Flack & M Gronow
Not particularly useful. - The CDPD Network
John Gallant, Technical Editor, PCSI
Very easy reading, interesting. - "The basics of the GSM technology platform"
GSM World focus 1996 , published by "Mobile Communications International"
Very interesting insight into GSM, but not very relevant. - "Wireless Data"
IEEE Communications Magazine - January 1995
Interesting, Of limited use. - "Tellabs Wireless"
CDPD vs. Other technologies
http://steinbrecher.com/compare.html
Useful. - Radio Design Group: Reed-Solomon Forward Error Correction Code Specification http://radiodesign.com/rs_fec.htm
Very useful insight into Reed-Solomon Correcting code. - RSA Cryptography Research and Consultation: Frequently Asked Questions http://www.rsa.com/rsalabs/faq/
Interesting, not too relevant - "The Technology behind Cellular Phones" article by Arif H.Saleem. SURPRISE 1995, Imperial College, London.
Excellent insight into Cellular Communication. Useful. - Pacific Communication Sciences Inc. (PCSI) homepage http://www.pcsi.com
Very useful. - CDPD Products: Modems and Portable Computers
Not very useful.
PCSI: http://www.pcsi.com/html/products.html
Not very useful.
CDPD Forum Inc: http://www.cdpd.org/library/report_card/table1.html
Useful. - Ethernet CSMA-CD Technology
Not very useful. Too brief. http://www.susx.ac.uk/USCS/Netteam/csma.html
http://literary.com/mkp/new/3689/book/node31.html
- IEEE Conference Paper, "CDPD - Advanced mobile phone standard network bandwidth contention". 13-15 Dec 1995. New Orleans, LA, USA.
- Network Switching Techniques-Circuit, Packet and Datagram: Halsall, Fred. Data Communications, Computer Networks and Open Systems. 4th edition 1996. pp 424-459.
- Research paper "Throughput and Availability of CDPD". Brian D.Woerner; Theodore S.Rappaport; Jeffery H.Reed. Wireless Personal Communications: Research Developments, 1995. pp 227-237.
Not very useful, too detailed and advanced. - "Current and SAR induced in a human head model by the electromagnetic fields irradiated from a cellular phone." Journal Paper. Hsing-Yi Chen; Hou-Hwa Wang. IEEE Transactions on Microwave theory and Techniques Dec 1994. Vol: 42 Iss: 12 pt.1 pp2249-54.
Useful. - "Modeling of hand-held recieving antennas in the presence of a human head" Conference Paper. Thiry X; Mittra R. IEEE Antennas and Propagation Society International Symposium 1995. pp 1116-1119, vol 2.
Useful. - "Health Effects of exposure to electromagnetic fields" Conference paper. Stuchly, M.A. 1995 IEEE Aerospace Applications Conference. pp 351-68, vol 1.
Useful. - "Modeling biological effects from magnetic fields". Journal paper. Blanchard J.P. IEEE Aerospace and Electronics Systems Magazine Feb 1996. Vol:11 Iss: 2 p 6-10.
Not useful. - "Magnetic Fields and cancer". Journal Paper. Carstensen E.L. IEEE Engineering in Medicine and Biology magazine July-Aug 1995. Vol: 14 Iss: 4 p 362-9.
Not useful. - "Three dimensional modelling of EM fields in the human head". Conference paper. Huang Y; Dilworth I.J. 9th IEE Internatinal Conference on Antennas and Propagation 1995. p 223-6 vol 1.
Not Useful. - "Electromagnetic Energy exposure of Simulated Users of Portable Cellular Telephones". Journal Paper. Balzano Q; Garay O; Manning T,J. IEEE Transactions on Vehicular Technology Aug 1995. Vol: 44 Iss:3 p 390-403.
Interesting, Useful. - Asynchronous Tranfer Mode , Solution for Broadband ISDN, Third edition 1993, By Martin de Prycker
Helpful to understand the ATM concept. - Communication Systems , Third edition 1994, By Simon Haykin , pp. 511 - 540
Helpful to understand the FSK and MSK concepts. - Interview with Mr. George Stavrides, 2nd Year Biochemistry Student, Imperial College 30.05.1996.
Very interesting insight into medical topics and very useful.
